High Precision Roughness Tester
+
  • High Precision Roughness Tester

High Precision Roughness Tester

  • Product description
  • Specifications
  • High Precision Roughness Tester



    Description

    Precision roughness tester DR300 is a high precision instrument

    to test the surface degree of finish. It can measure surface

    roughness of the machined parts, including plane, bevel, outer

    cylindrical, surface, holes, trenches and axles and so on.

    Measuring Range



    Parameter

    Indicating Range

    Ra, Rq

    0.005μm~16μm

    Rz, R3z, Ry, Rt, Rp, Rm

    0.02μm~160μm

    Sk

    0~100%

    S, Sm

    1mm

    tp

    0~100%



    Features



    Sensor and main unit are separated, to meet different demands of test



    Use DSP chip to control and process data, with high speed and low power consumption Compatible  with  ISO,  DIN,  ANSI,  JIS



    multiple national standards



    Continuous working time more than 20 hours



    Large-capacity data storage, can store 100 groups of raw data and waveform.



    Thermal printer and instrument are integrated as a whole, quiet work, rapid print, you can print the contour curve and ratio curve of the material.



    Real-time clock setting and display for easy data recording and storage.



    With automatic sleep, automatic shutdown and other power-saving features



    Reliable circuit and software design to prevent the motor stuck.



    Instrument can display a variety of information tips and instructions. For example Measurement result display, the menu prompts, error messages, and switches.



    Chinese / English language selection.

    Can connect to the computers



    Print all the parameters or any parameter set by the user.



    Optional curved surface sensor, holes sensors, measuring platform, sheath of sensor, extension rod and other accessories.

  • Technical Parameters





    Name

    Content

    Measuring



    Z-axis (vertical)

    160μm

    Range



    X-axis (horizontal)

    17.5mm







    0.01μm/±20μm

    Resolution



    Z-axis (vertical)

    0.02μm/±40μm







    0.04μm/±80μm







    Ra Rz==Ry(JIS)

    Measuring



    Parameters

    Rq Rt==Rmax

    Items



    Rp Rv R3z R3y Rz(JIS)











    Rs Rsk Rku Rsm Rmr

    Rpc, Rk, Rpk, Rvk, Mr1, Mr2





    Standard

    ISO, ANSI, DIN, JIS





    Graph

    Supporting curve, roughness

    profile, direct contour

    Filter



    RC, PC-RC, Gauss, D-P

    Sampling

    length (lr)

    0.25, 0.8, 2.5mm

    Evaluation

    length (ln)

    Ln=lr×n

    n=1~5











    Measuring

    Principle

    displacement

    differential inductor





    Stylus

    Natural diamond, 90 cone

    angle, 5μm tip radius

    Sensor



    Dynamometer

    <4mN



    Guide head

    Carbide, the sliding

    direction radius 40mm









    Sliding Speed

    lr=0.25,





    Vt=0.135mm/s













    lr=0.8, Vt=0.5mm/s







    lr=2.5, Vt=1mm/s







    Return, Vt=1mm/s

    Indicator Error



    no more than ±10%







    Indication

    Fluctuation

    no more than 6%

    Power



    Built-in lithium-ion rechargeable

    battery, charged by



    DC5V, 800mA charger







    Dimension



    158×63.5×46mm

    Weight



    About 300g

    Operation Environment

    Temperature: -20℃~40℃

    Humidity: <90%RH

    Storage and

    transportation environment

    Temperature: -40℃~60℃

    Humidity: <90%RH

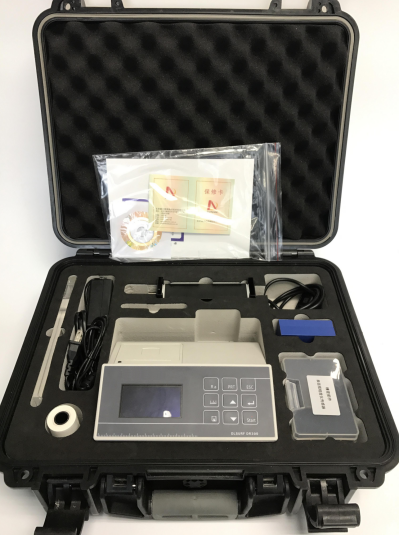

    Standard Configuration

    Roughness Tester DR300

    Standard Sensor

    Multi-groove standard specimen

    Adjustable bracket

    Power Adaptor

    Instructions ◎Certificate

    Warranty Card

    Software



    Warranty: for 12 months
