Portable Wire Rope Inspection
+
  • Portable Wire Rope Inspection

Portable Wire Rope Inspection

subcategory

  • Product description
  • Specifications
  • Portable Wire Rope Inspection

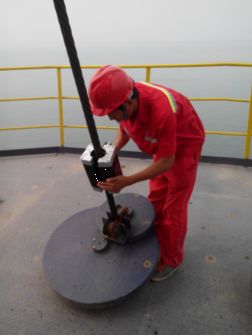

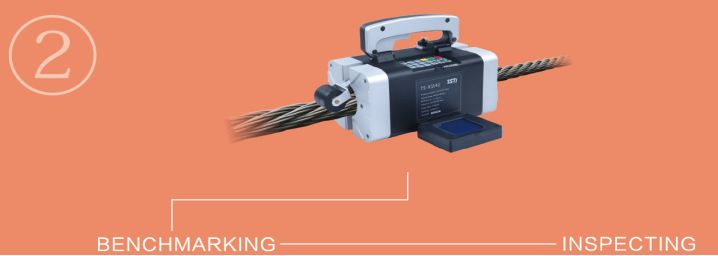

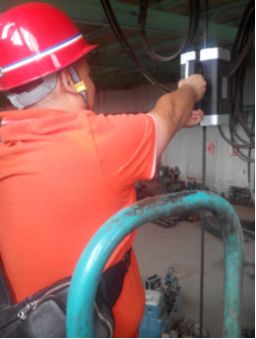

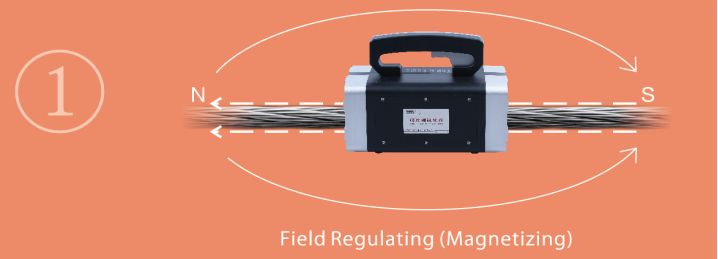

    We developed on basis of magnetic inductive sensing technology and MFL(magnetic flux leakage) wire rope inspection technique. The system can be applied for the portable inspection of steel wire ropes and steel pipes for the physical damages or material deteriorations.



    TS-X1124\X1142\X1160(X) are the 3 standard models in the portable series for the inspection of steel wire ropes with diameters  of  6mm-70mm.



    Customized models can be developed based on specific applications of the clients, such as for extra wide wire ropes up to 120mm, and for enviroments that require Intrinsic Safe and Explosion Proof design.



    General

    •Nondestructive inspection of wire rope with diameter from

    6-70mm

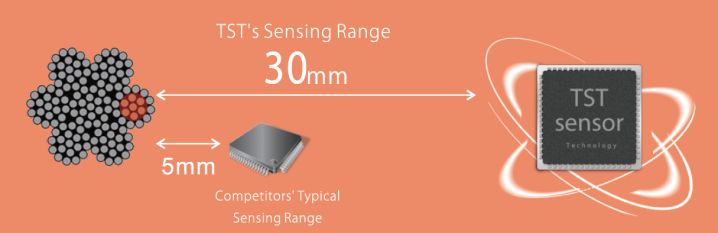

    •Detection powered by TST sensor array

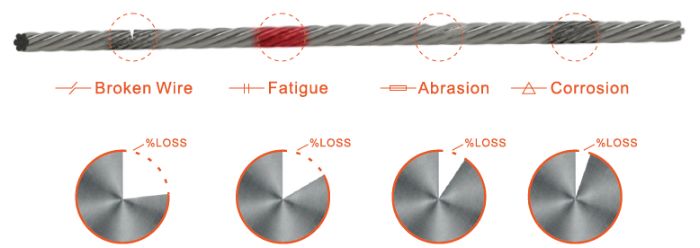

    •Portable detection of various flaw types including broken wire, corrosion , pitting, abrasion , fatigue etc for which a magnetic signature will be left due to the occurrence of a flaw event

    •Instant monitoring and evaluation of inspection process with portable 'Control Panel' and 'Screen'

    •Data processing with built-in signal processor for portable application

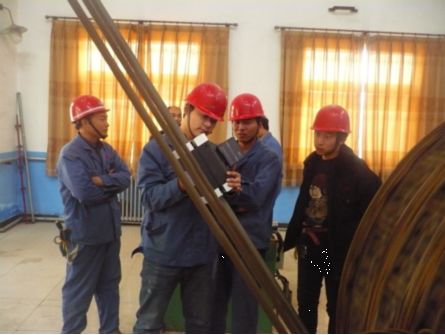

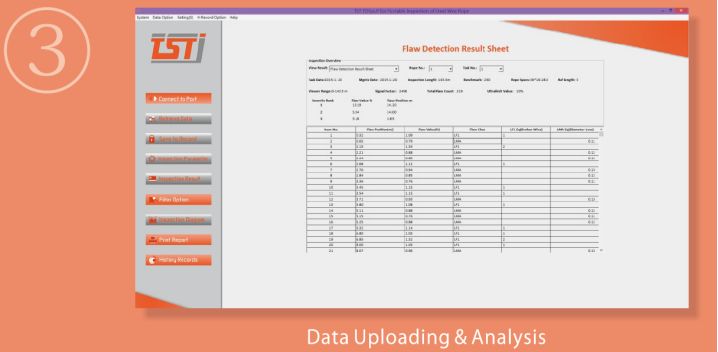

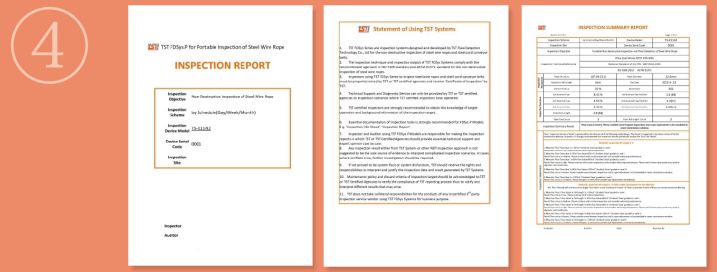

    •Evaluating and reporting with built-in and PC software set for portable application



    Inspection Speed

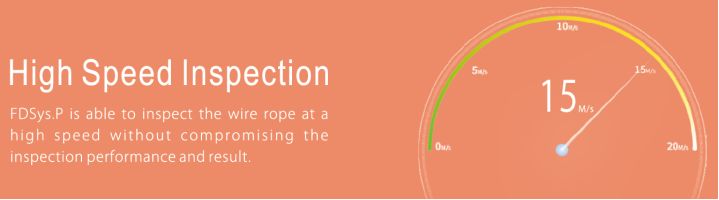

    •< 15 mis (or as limited for safe operation)







    Defect Types

    •LF(Local Fault)  LMA(Loss of Met allic Area)

    •Physical damages:Broken wire,Abrasion,

    Structure Deformation

    •Material Deteriorations: Corrosion, Fatigue

    Flaw Detection

    • Qualitative Flaw Detection

    • Quantitative Flaw Detection

    • High Repeatibility

    • High Accuracy

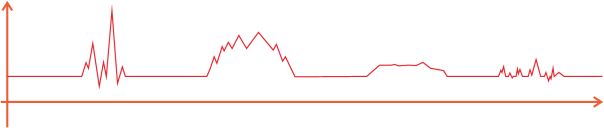

    • Waveform Insp ect ion Diagram Output

    • Statistical Insp ection Result Table Output



    Features

    Specifications

    MODEL

    ROPE

    DIAMETER

    ROPE SAMPLE REMARK

    TS­ X1124

    Ø6-24mm



    6x7+FC Ø8  6x9W+IWR Ø15  6x19S+FC Ø20   6x19W+IWR Ø24

    TS­ X1142

    Ø22-42mm



    6x26WS+IWR Ø25  6X31WS+IWR Ø30  6X29Fi+FC Ø35  6x29Fi+IWR Ø40

    TS­ X1160

    Ø40-65mm



    6x36WS+FC Ø45              6x37S+IWR Ø50



    6X49SWS+FC Ø55           6X55SWS+IWR Ø60

    TS­ X1160X

    Ø40-70mm
