High Performance Horizontal Motorized Test Stand
+
  • High Performance Horizontal Motorized Test Stand

High Performance Horizontal Motorized Test Stand

subcategory

  • Product description
  • Specifications
  • Features:

    ◆ There are three test modes in the MH2 series:

    Manual speed regulation, manual fixed speed, automatic cycle fixed speed

    ◆ Range: 500N (about 50kgf) Stroke: 235mm

    ◆ Speed 10-300mm/min

    ◆ Function: can display speed, adjust travel limit left and right, anti-overload setting, timing setting, counting or setting test times (maximum 65535 times), etc.

    ◆ Optional: encoder, MTA meter (with length), speed change, length control, power control.

    ◆ Application: Testing of various materials within 500N

    *The binding test bench uses dynamometers and accessories to create specialized test systems for compression tests, tensile tests (stretching), crimping tests, peel tests, and friction tests.

    * Analyze the breakpoints and free fit of the mechanical part.

    ◆ Motor and controller all use Japan

    Oriental motor (Japan Oriental Motor)

    ◆ Voltage: AC100-240V

    ◆ Weight: 14Kg

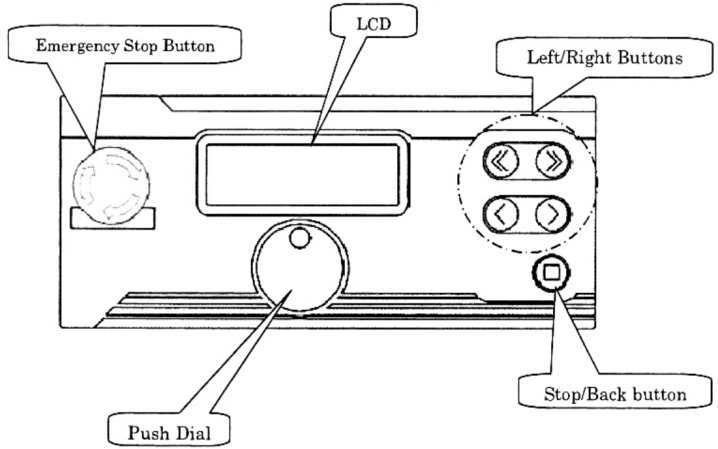

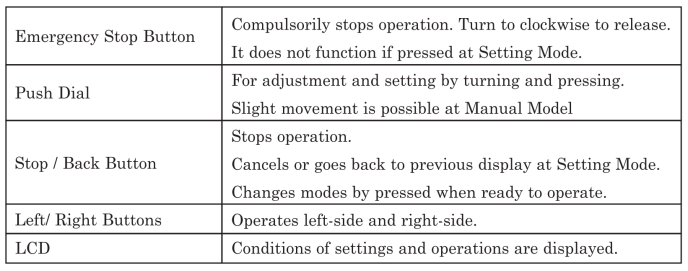

  • Operation panel
