Features
1. No need to calibrate torque wrench dead weight.
2.Calibration condition of loading smoothly.
3. Unit: N.m,kgf.cm,kgf.m,Ibf.in,Ibf.ft
4. Clear function
No need to clear manually, reset by one key.
5. Data storage/calculating function
It can store 99 sets of data, and stored data can be sampled to show sample count, MAX,MIN and AVG.
6.Data can be transferred to external device
USB output port can connect TWC with computer.
7.Power Supply:AC100-240V±100% 50/60Hz
-

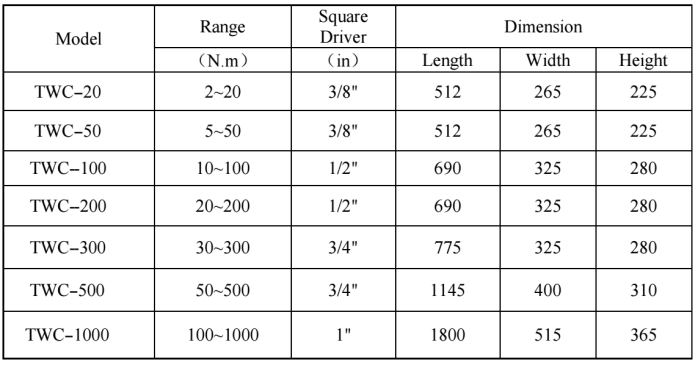

Specifications
1 Display: 8 LED tube, LED height 10.5mm
2 Count value: 2 digits
3 Torque value: 5 digits
4 Markers showed
RUN: follow mode
PEAK: Peak mode
M.R: manual save/reset
A. R: auto save/reset
5.Unit: N.m,kgf.cm,kgf.m,Ibf.in,Ibf.ft
6.Accuracy: ±100% + 1 digit

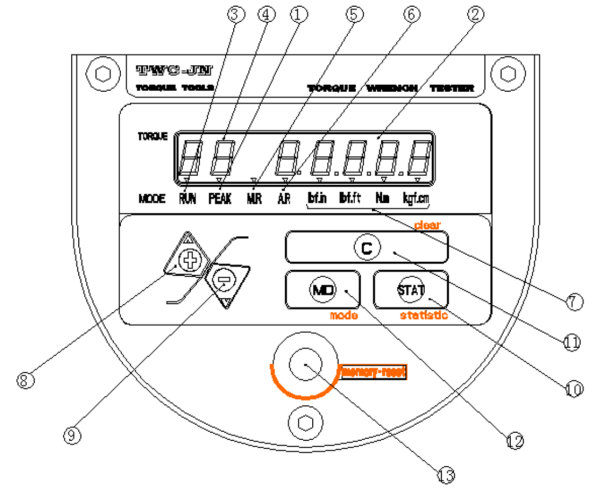

(1)Data Display the current data
(2) N.m Display the current torque value
(3) RUN When you select RUN mode, the indicator turns on.
(4)PEAK When you select PEAK, the indicator turns on
(5)MR The indicator flashes when you select manual mode
(6)AR The indicator flashes when you select automatic memory mode
(7) bf.ft(two units) It shows the current unit you use
(8) + To increase the data display
(9)- To decrease the data display
(10) Clear Under PEAK mode, press C to delete peak data; it can also delete the memory data.
Under the RUN mode, press C to ZERO. (Back to Zero)
(11)Statistic To take sample data from the memory, include the number of sample, maximum,
minimum and average data.
(12)MODE Press Mode to select RUN or PEAK
(13)Reset/Save Saving the current data under manual save mode, the data increasing the same
time.
Stardard accessory
(1)digital torque wrench calibrator 1pc
(2)Wire 1pc
(3)loading panel 1pc
(4)standard adapter according to requirement
(5) USB cable 1pc
(6) operation manual 1pc
(7) certification 1pc
